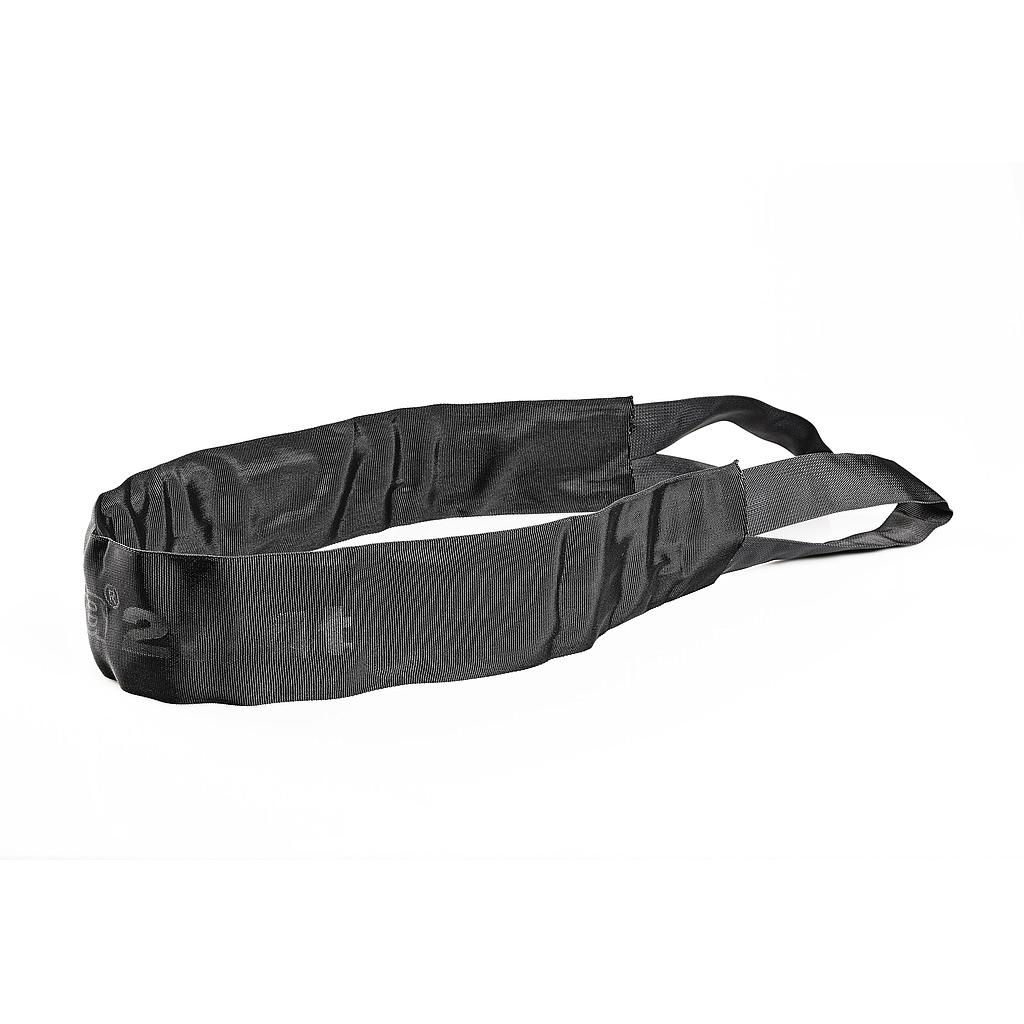

loop cobra ultrastatic S (1,2 m)

Product Code: 0461
https://www.cobranet.de/web/image/product.template/36/image_1920?unique=d8da274

    45.15 € 45.15 € 45.15 EUR

    45.15 €

    excl. VAT (plus shipping costs)

    This combination does not exist.

    Add to Cart

    Technical specifications:
    Material (core): Dyneema
    Material (sheath): textile polypropylene (PP) braided hose
    Dimensions: Length: 1200, width: 80 mm
    Tensile strength:single: 4,500 daN
    double (wound around the anchorage point): 9,125 daN



    Description:
    Due to the extremely stable Dyneema filaments used, the cobra ultrastatic hollow rope has a very low ultimate ductile yield (2 %) and a very high tensile strength, but at the same time a very small diameter of only 10 mm. Therefore it is not possible to insert a sufficiently broad expanding insert into the cobra ultrastatic cable for appropriately distributing loads. That is why we have deviated from the one-component system principle and have developed a loop for cobra ultrastatic that meets the requirements of the system.

    The cobra ultrastatic loop has a high-strength core of fanned-out Dyneema filaments and a single tensile strength of 4.5 t (4,500 daN). When installed, the loop is slung around a stem so that the acting load is distributed among two legs - the tensile strength then is 9 t (9,000 daN).

    The cobra ultrastatic loop is available in different lengths, choose the fitting one.
